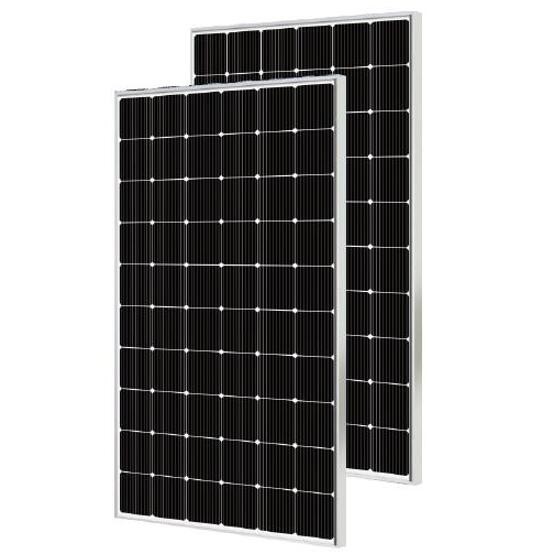

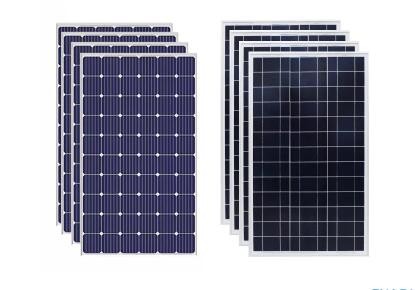

High efficient Solar Panel ( mono/poly)

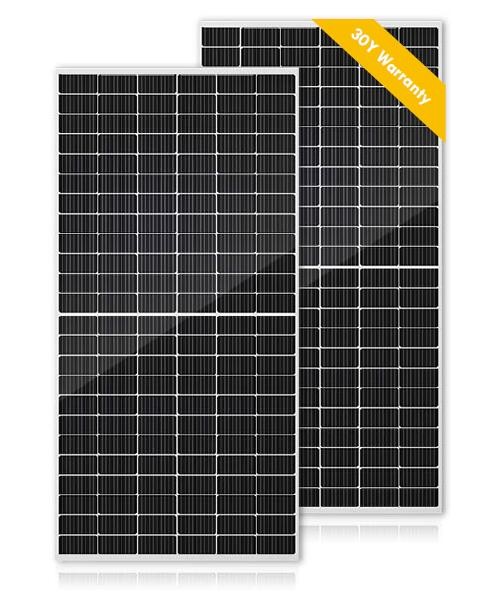

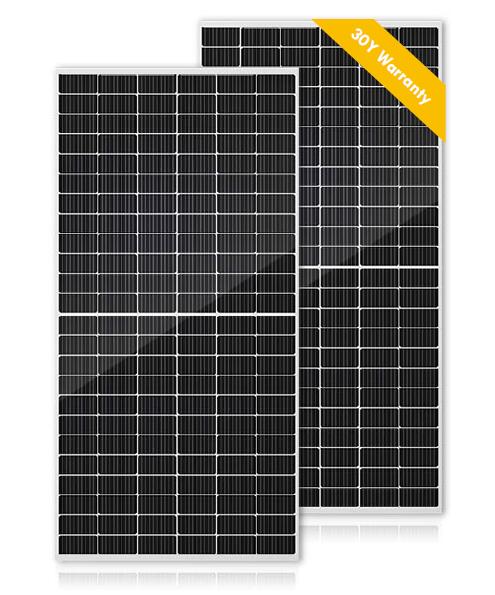

166M/186/210   HALF CELL

200W-380W

400W-450W

460W-600W

Outstanding mechanical load resistance
2400 Pa wind load, 5400 Pa snow load
Anti-PID(potential induced degradation)
Passed anti-PID test under 85% damp heat, 85% relative humidity for 96 hours
Great Durability against extreme conditions
Passed salt mist corrosion tese,ammonia corrosion test,dust&sand test,fire teset,all certified by TUV

Double electroluminescence ( EL ) tests
Carefully inspected before and after lamination to guarantee fault-free modules

ELECTRICAL PERFORMANCE

Dimensions (L / W / H) 2094×1038×35mm

Peak Power at STC (Pmax)                    430
Maximum Power Voltage (Vmp)              40.7
Maximum Power Current (Imp)               10.57
Open Circuit Voltage (Voc) 48.5±3%
Short Circuit Current (Isc) 11.31±3%
Module Efficiency(﹪) 19.78

THERMAL CHARACTERISTICS & OPERATING CONDITIONS

Maximum System Voltage(V) 1500/1000V

Maximum Series Fuse Rating(A) 20A

Pmax Temperature Coefficients(W/°C ) -0.400%

Voc Temperature Coefficients(V/°C )                           -0.290%

Isc Temperature Coefficients(A/°C)                             +0.048%

NOCT Nominal Operating Cell Temperature(°C )            45±2°C

Operating and Storage Temperature(°C )                     -40°C~+85°C

CONSTRUCTION MATERIALS

Front Cover (Material / Thickness)          low-iron tempered glass/3.2mm

Front Cover (Material / Thickness) 166*83 Mono

No. of Cells 144 (6*12)*2

Frame (Material) Anodized Aluminium Alloy

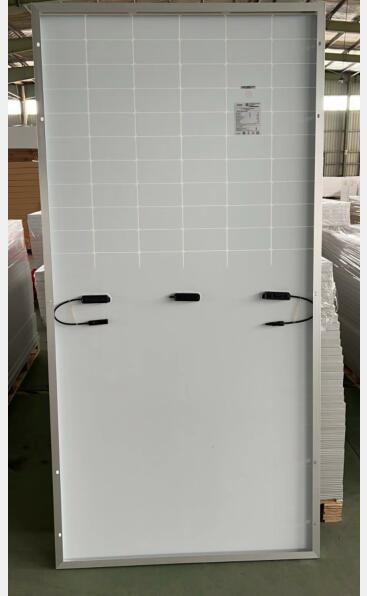

Junction Box (Protection Degree) IP68 3 diodes

Cable (Length/Cross-Sectional Area) 4mm² cable 30cm+MC4

PACKAGING SPECIFICATIONS

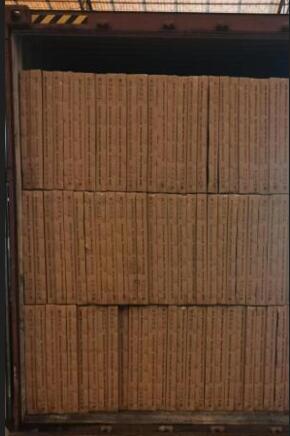

20FT container      10Packages/245PCS

40HQ container 22Packages/726PCS

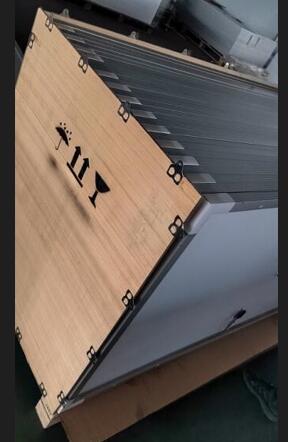

LCL shipment (wooden box Package )                   Full container (2 pcs package )

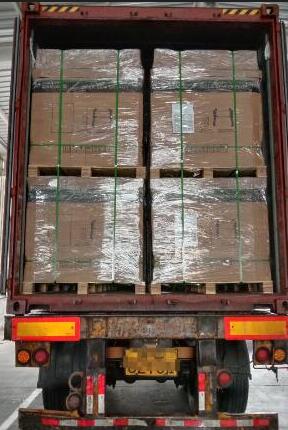

Full container (pallet package  )
